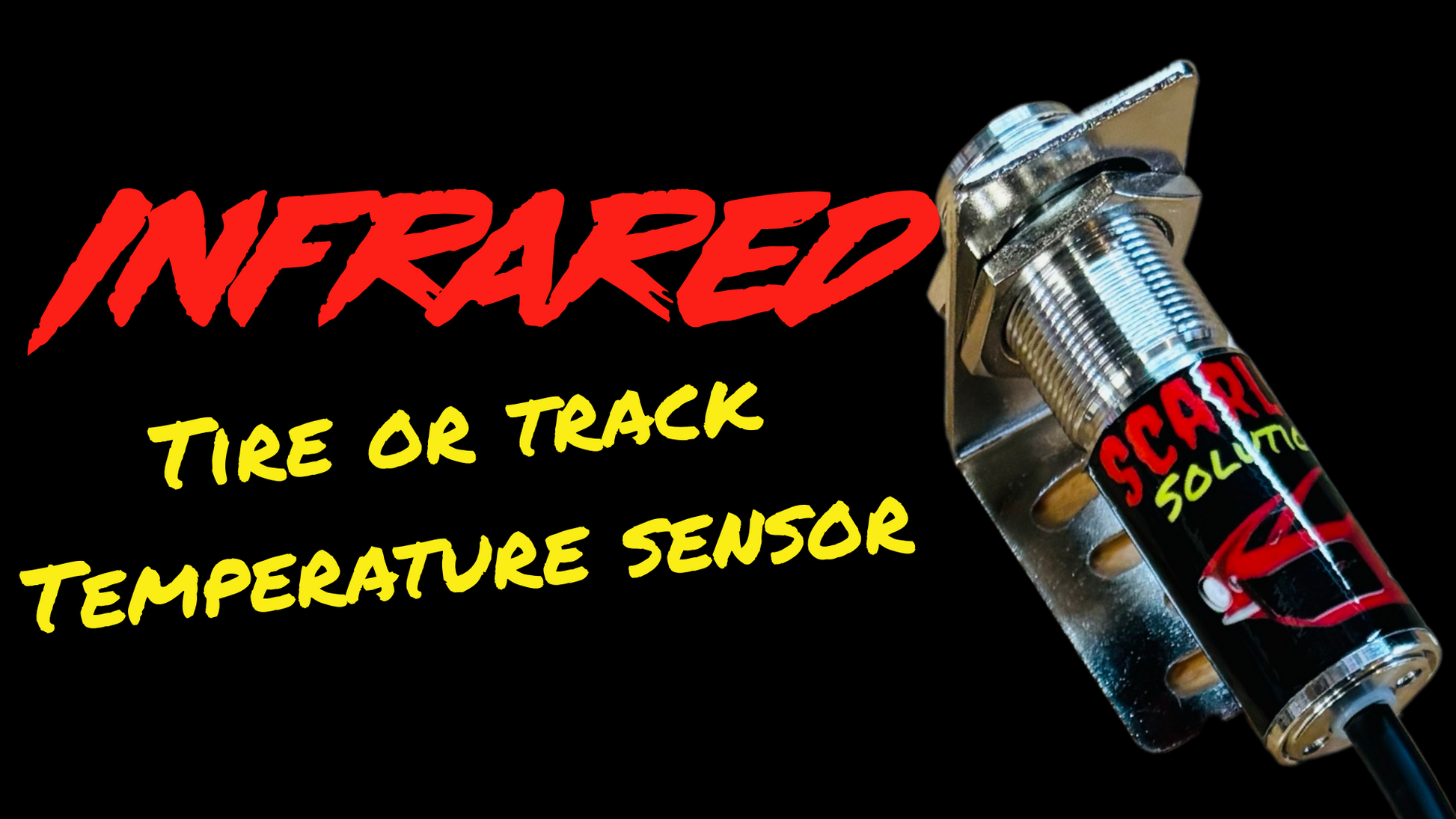

infrared track and tire temperature sensor

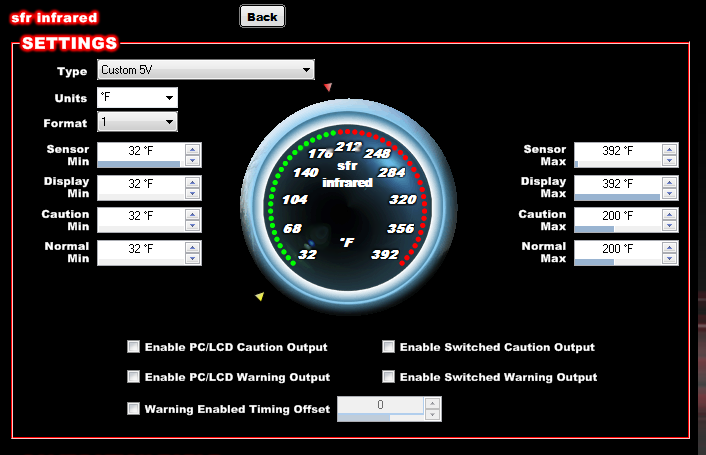

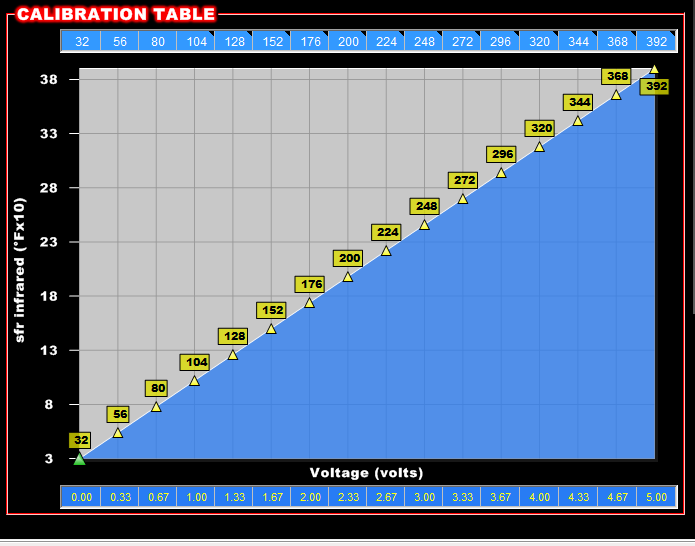

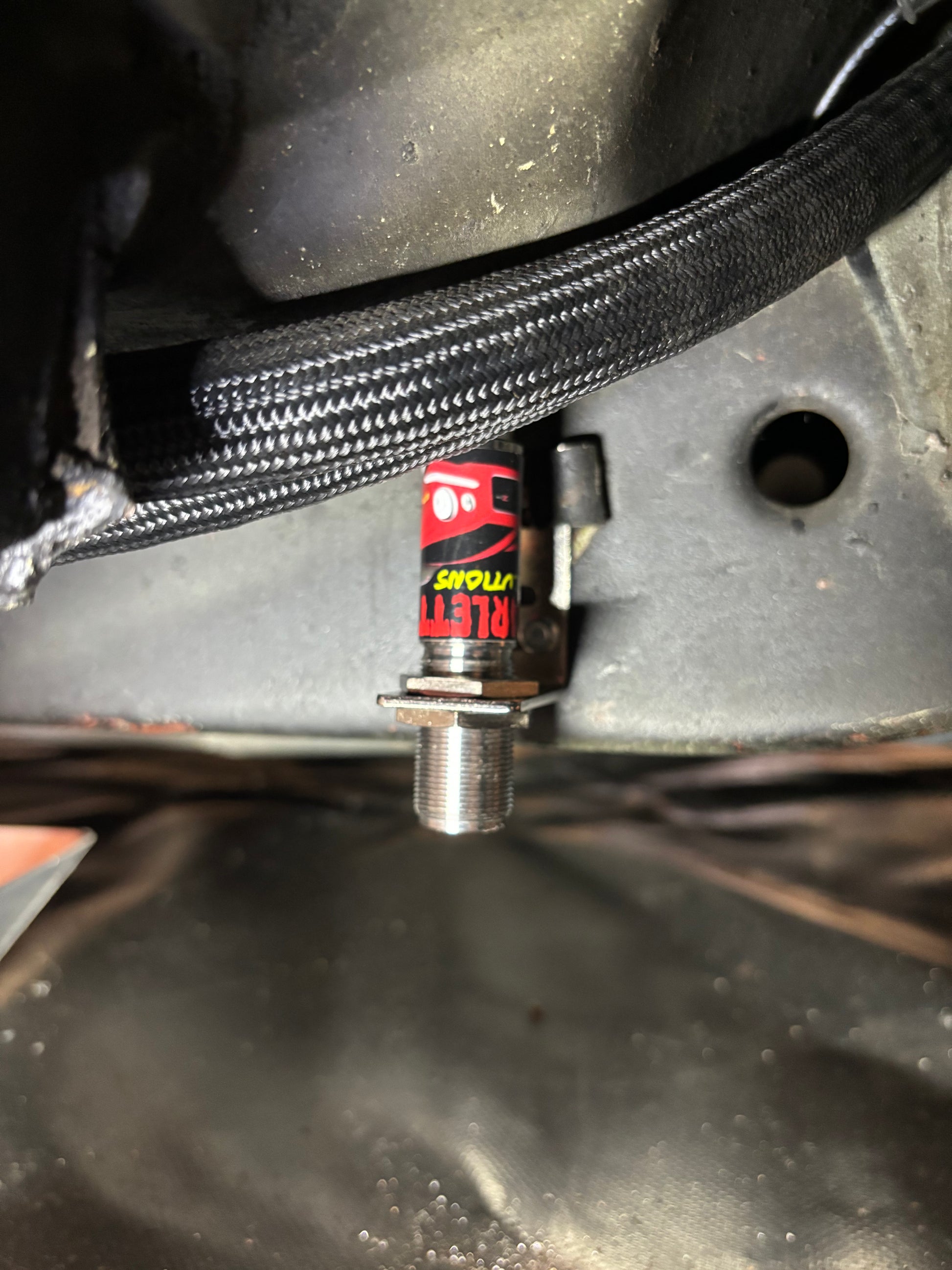

These can be mounted just about anywhere using our included bracket.  Useful for track temperature or tire temperature.  In a perfect world one of these pointed at the track and one at the tire would provide data about the consistency of your burnouts. It also allows tailoring those burnouts to track conditions.  You can also generate quantifiable data to prove you are like me and every burnout is completely inconsistent.  You can even aim it at your torque converter if you want to see how much heat it takes to burn the paint off.  0-5v output, 12 or 16v power.  See attached image of scaling.  This sensor reads from 32-392 degrees F or 0-200 degrees C.  Can be programmed either way.  Step your data game up with help from Scarletts Solutions.

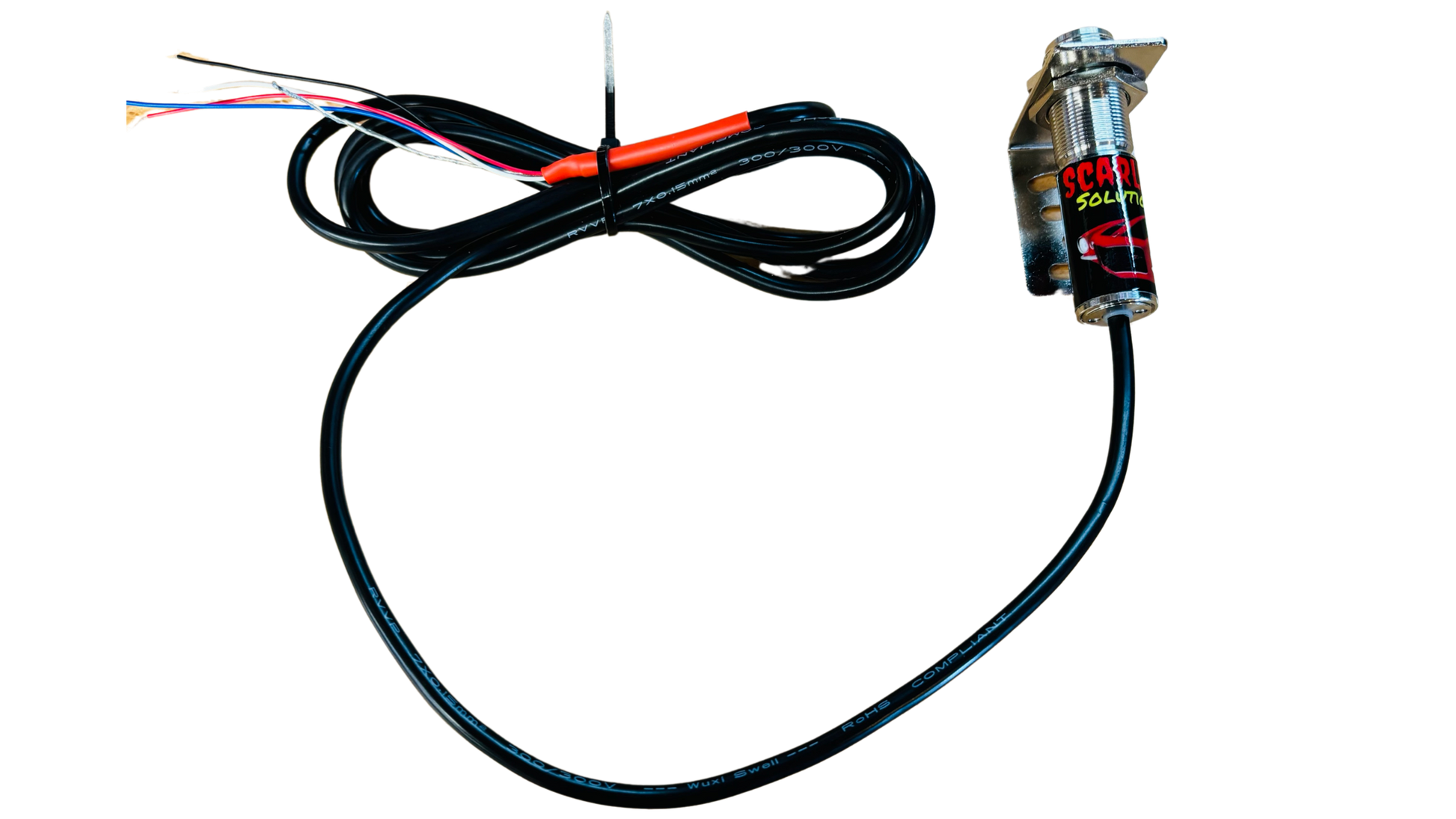

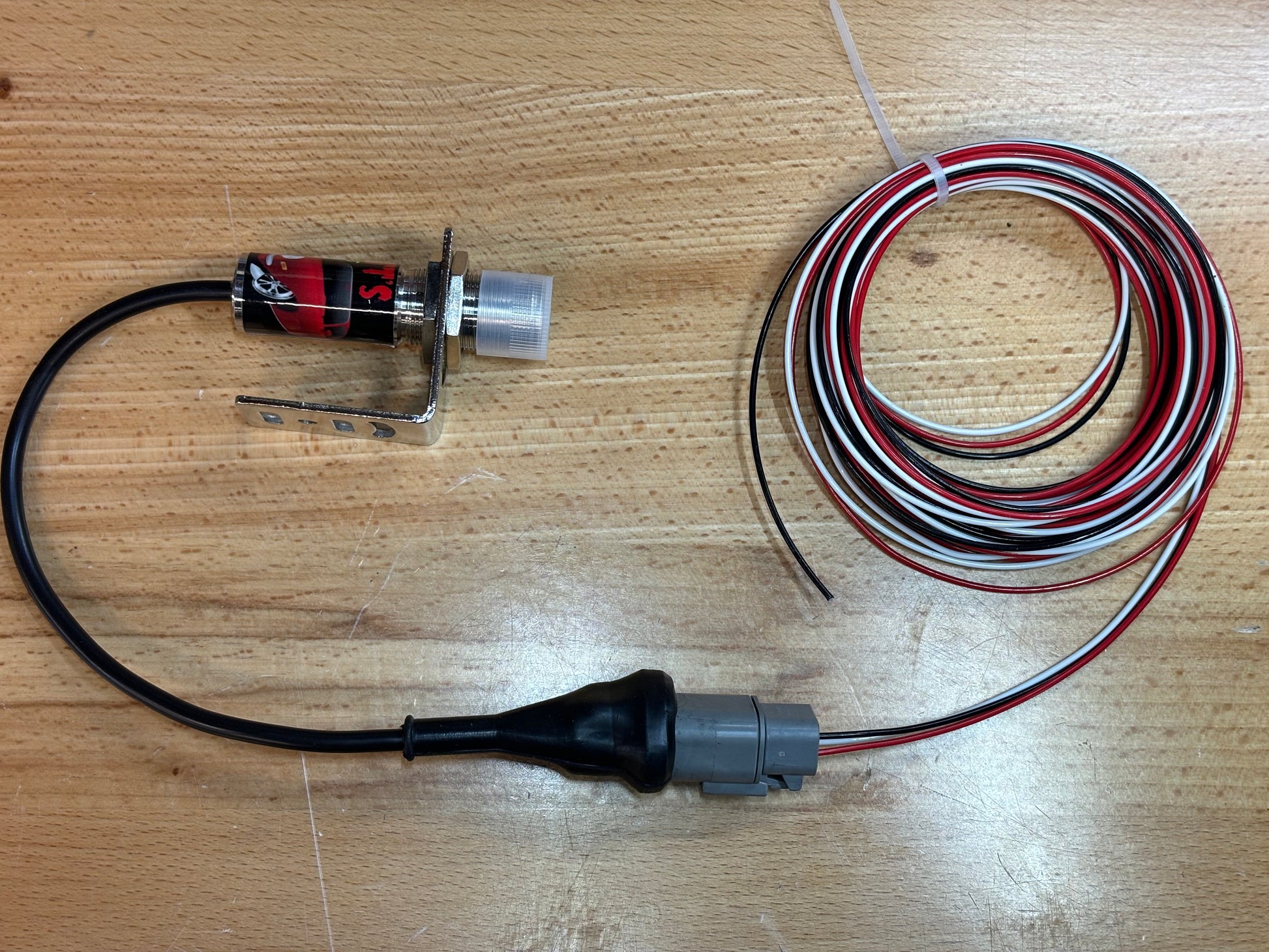

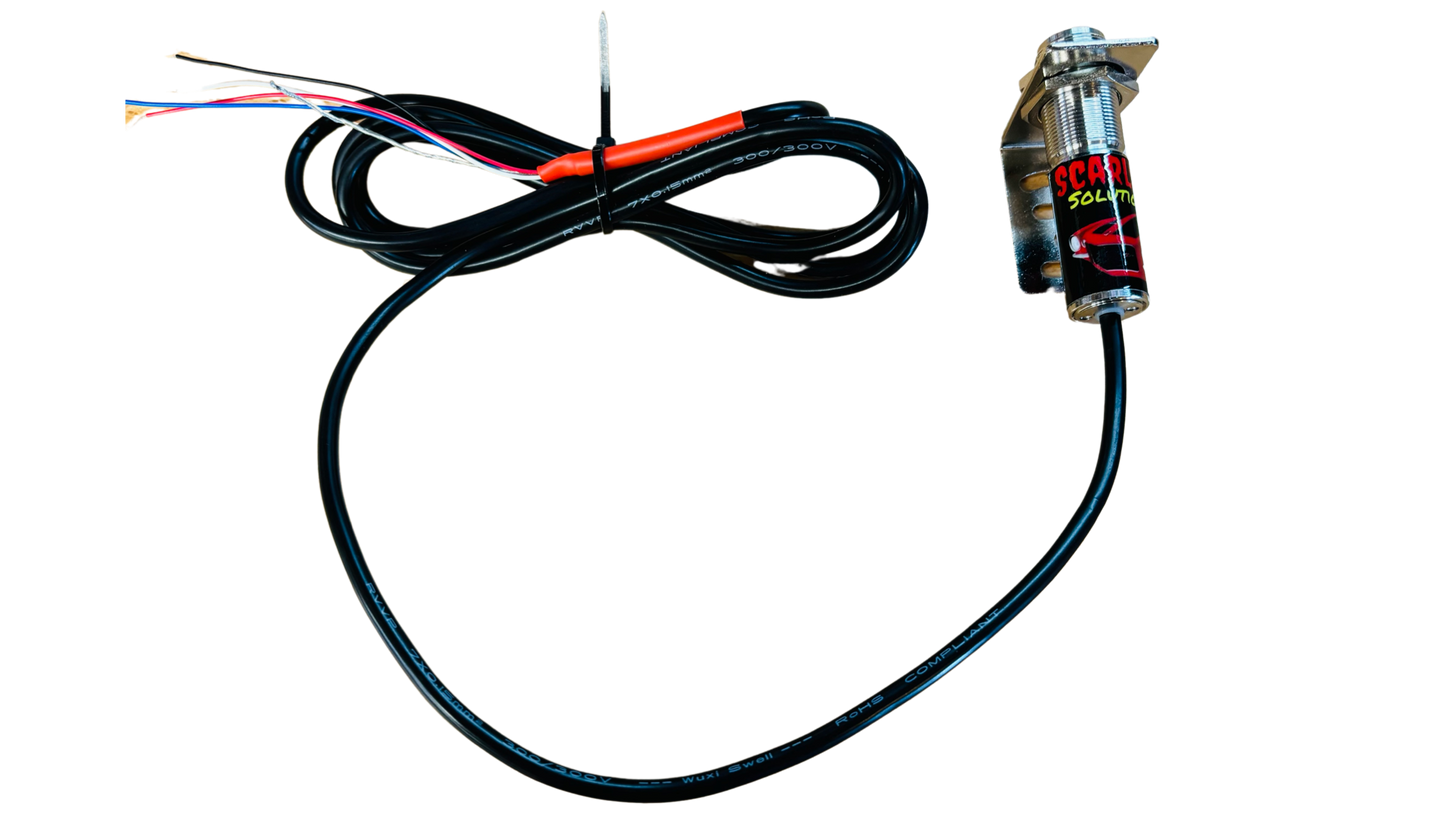

includes mounting bracket and unterminated cable. Pictured connector can be purchased separately. This sensor is extremely easy to install and wire - 3 wires  -12v power (from Ecu), sensor ground, 0-5v input.
