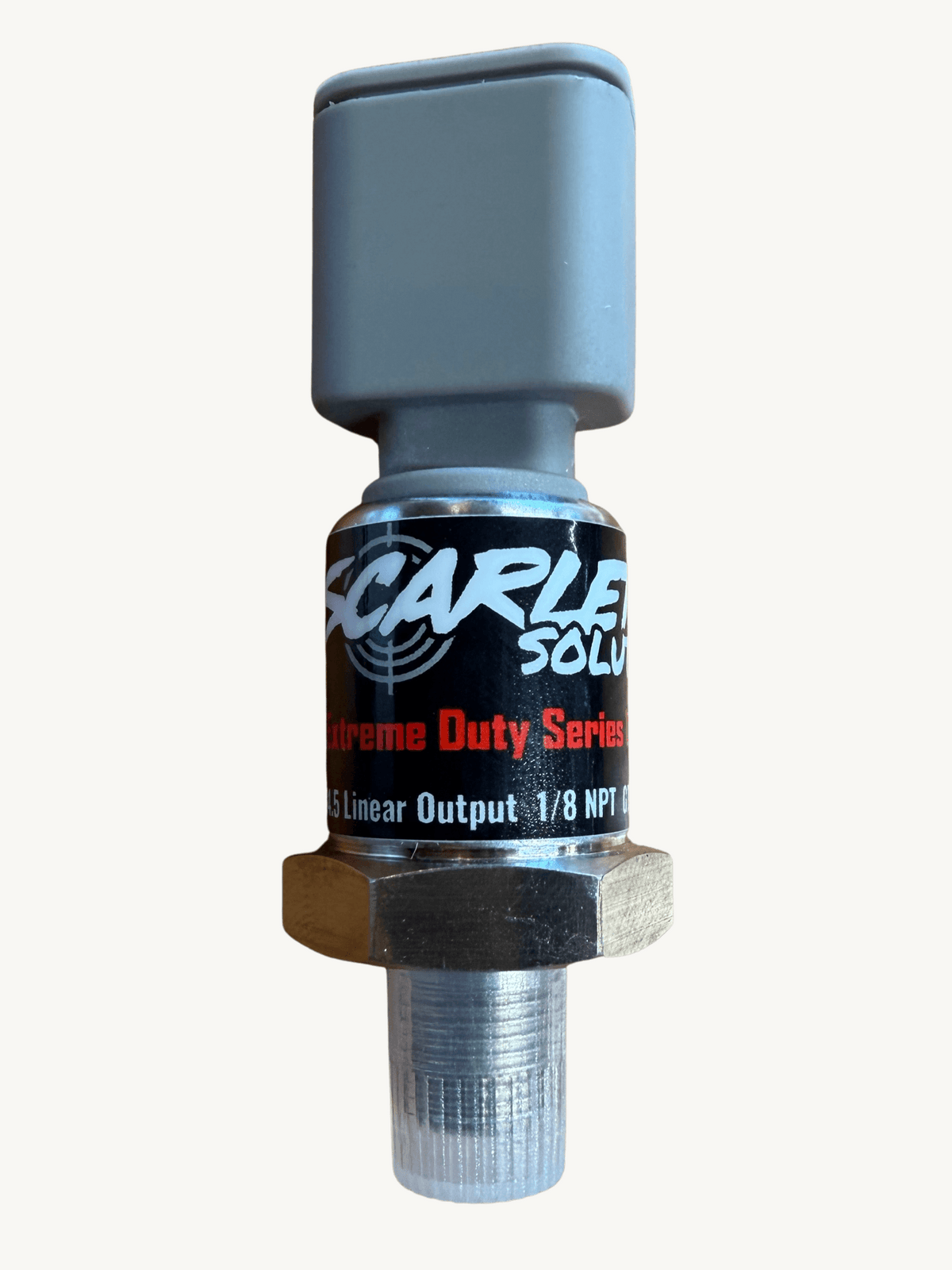

Extreme Duty DTM Pressure Sensor 0-100 PSI

Extreme Duty DTM Pressure Sensor 0-100 PSI

All the benefits of our extreme duty lineup with a DTM connector. The DTM connection simplifies harness assembly and routine servicing. The environmentally sealed design protects against moisture and debris, with durable contacts designed for repeated connection and disconnection. Our matching DTM cables plug directly in for an even simpler installation. Our DTM cables to use with these can be found here

https://scarlettssolutions.com/products/shock-sensor-cable-high-quality-pre-wired-dtm-cable

0-100 psi

Pinmap

1. ground

2. 5v

3. Signal

These work exceptionally well for waste gate pressure, dome pressure, oil pressure, fuel pressure, and more. These sensors are compatible with all fluids commonly used in the automotive industry.

Specifications

Accuracy = +/- 0.5% full scale

Temperature = -35 to 125 degrees Celsius

Sensor supply voltage = 5v

Sensor output = 0.5-4.5 volts

0.5v = 0 PSI

4.5v = 100 PSI

1/8 NPT
