12 Inch Shock Travel Sensor

Our shock travel sensors are a perfect addition for anyone wanting to add suspension data to their performance vehicle.  Shock sensors let you know, with quantifiable data, why your car wheelies or spins the tires.

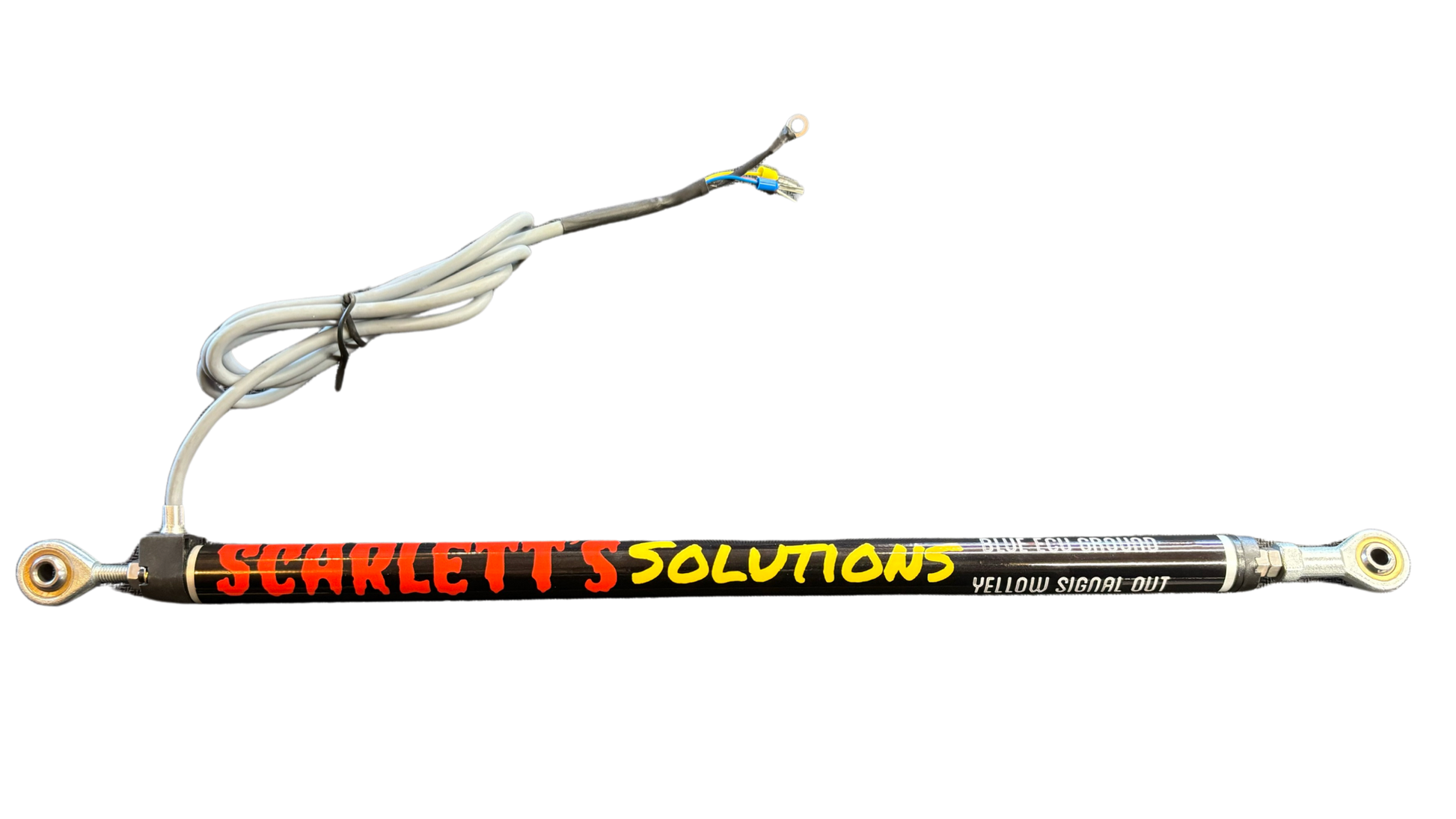

Sensors are 5/8 inch diameter which is small enough to fit anywhere but beefy enough for the toughest environments. These are suitable for front and rear shock travel.  The wiring pinout is printed on the sensor decal, making installation easy.  These sensors provide a linear 0-5v output.

Our shock travel sensors feature an anodized aluminum body and a stainless steel shaft. Output is directly proportional to the distance the rod is extended - this provide infinite resolution.

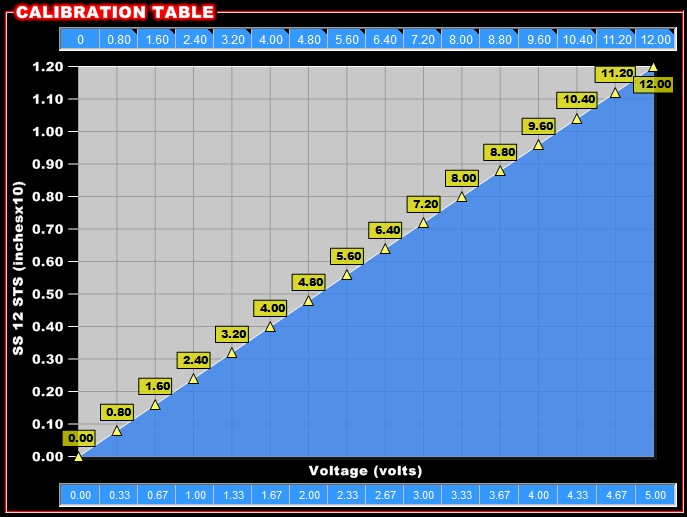

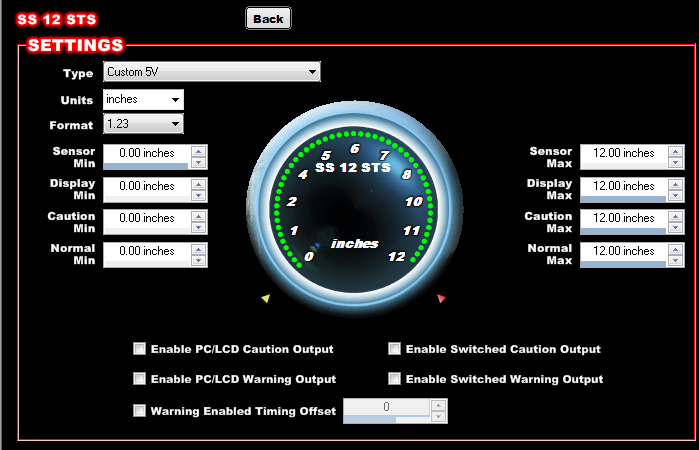

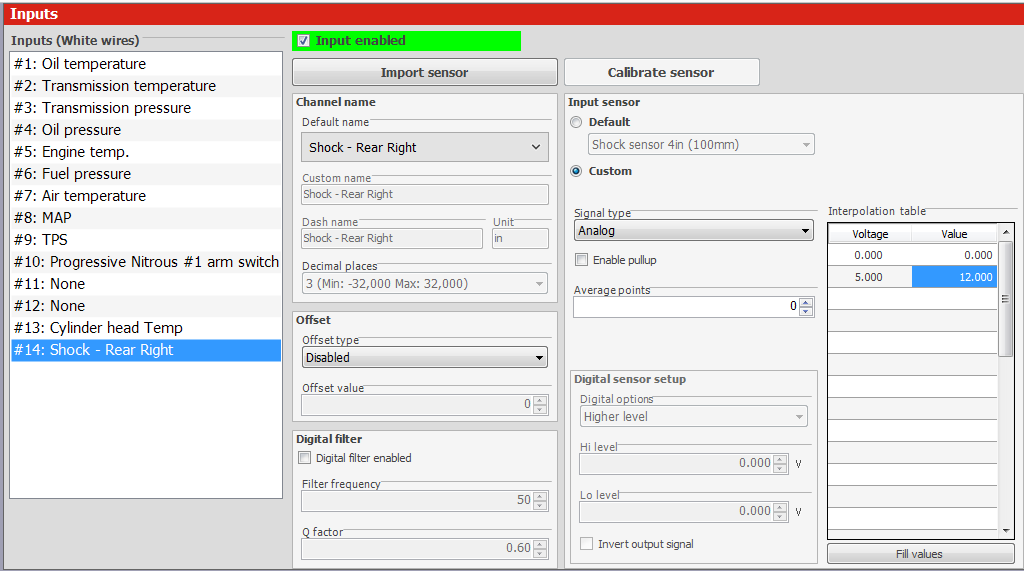

Scaling is provided in the product photos.  If you have questions about how to scale the sensor or have problems feel free to contact me. Checkout our array of mounts for a complete package.

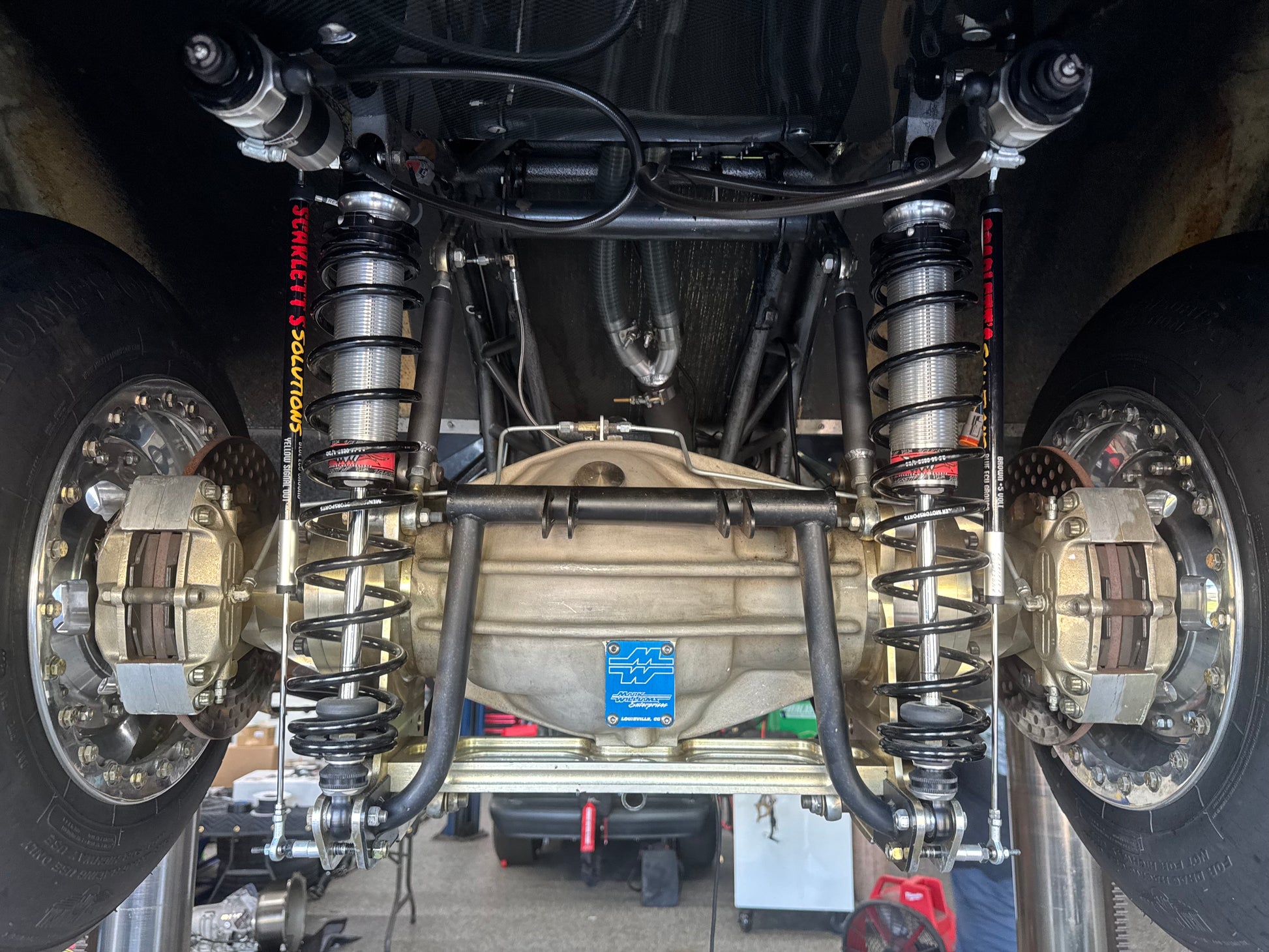

This 12 inch option is perfect for long travel no prep or a radial car that goes chin down and skyjacker in the rear.

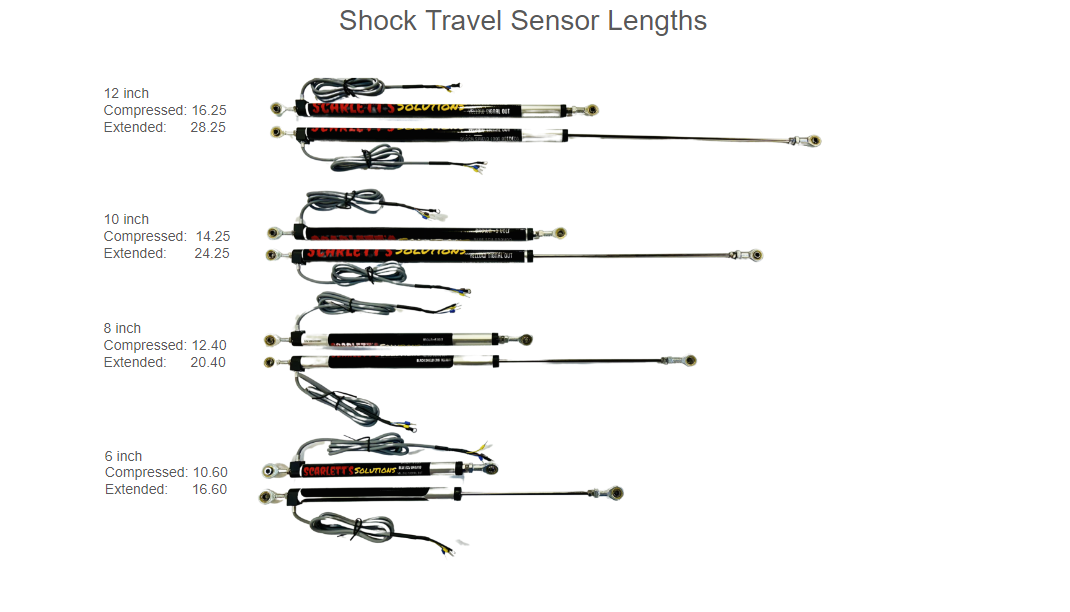

Eyelet to Eyelet Measurements - 16.25 inches compressed, 28.25 inches extended.  These values can be adjusted slightly by moving the eyelet jam nuts.

Please measure carefully when installing sensor to ensure that it can not be bottomed out or over extended during suspension movement.
