10 Inch Shock Travel Sensor

Our shock travel sensors are a perfect addition for anyone wanting to add suspension data to their performance vehicle.  Shock sensors let you know, with quantifiable data, why your car wheelies or blows the tires off.

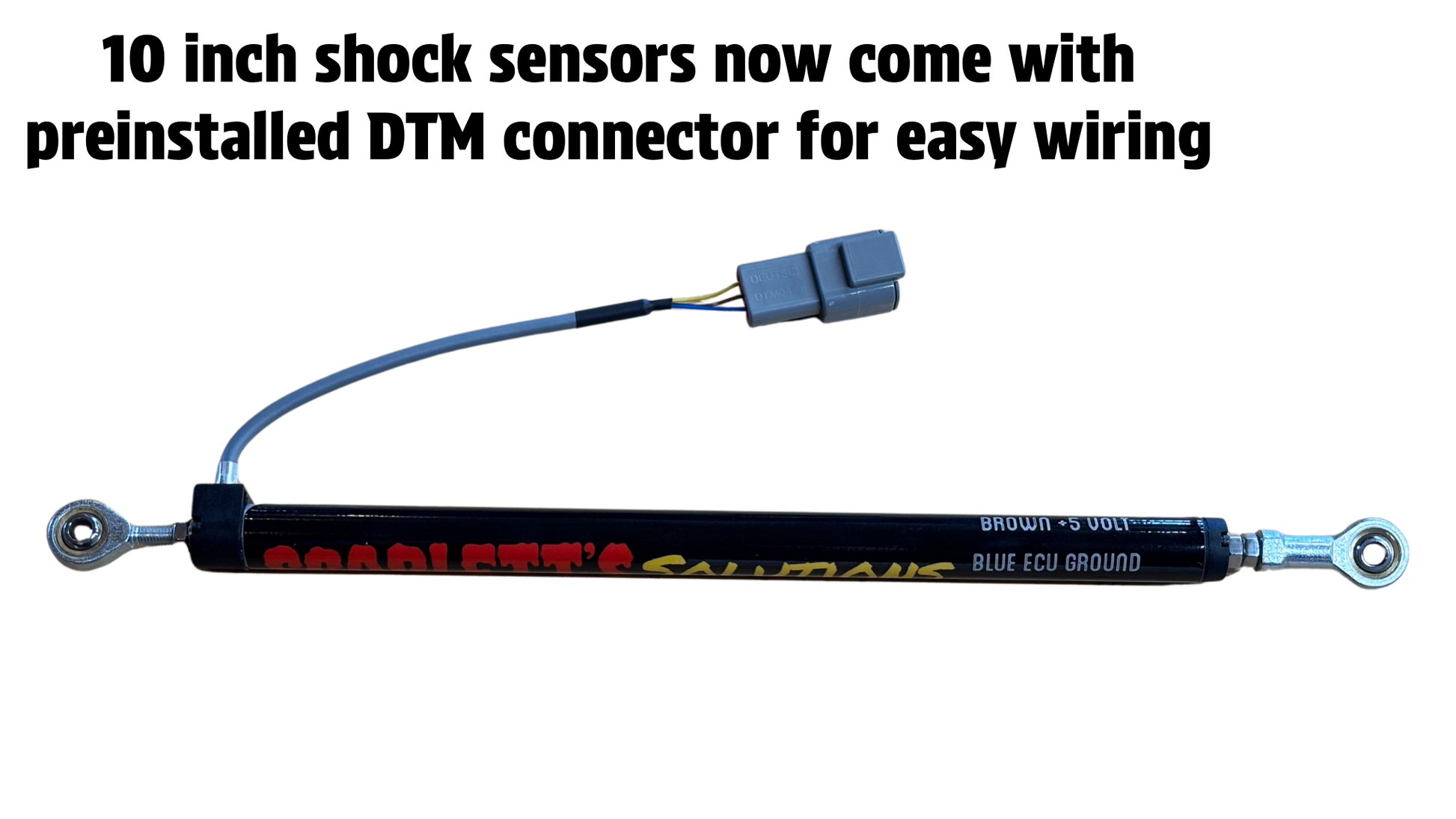

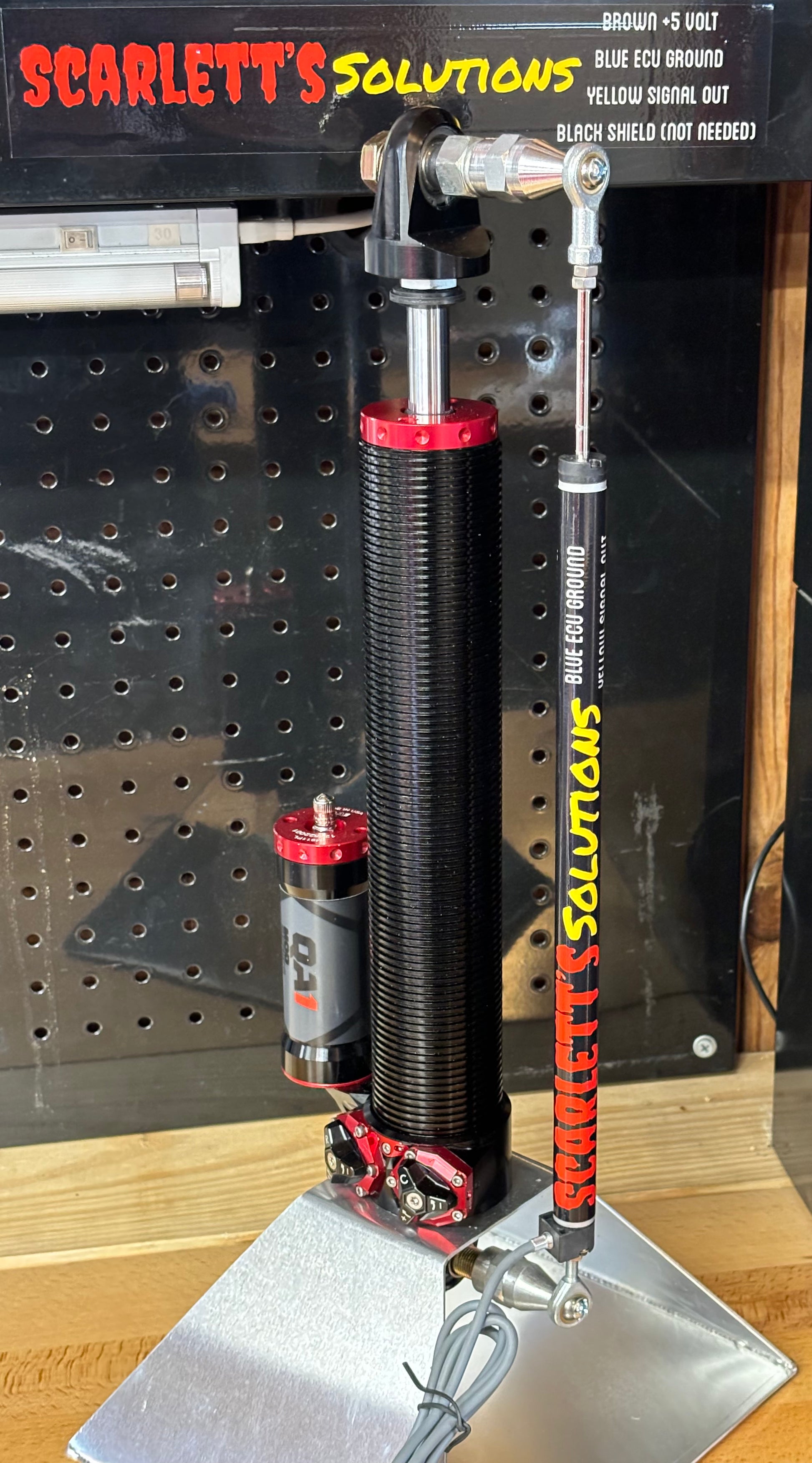

Sensors are 5/8 inch diameter which is small enough to fit anywhere but beefy enough for the toughest environments. These are suitable for front and rear shock travel.  The wiring pinout is printed on the sensor, making installation easy - you don't even have to get up to find the directions.

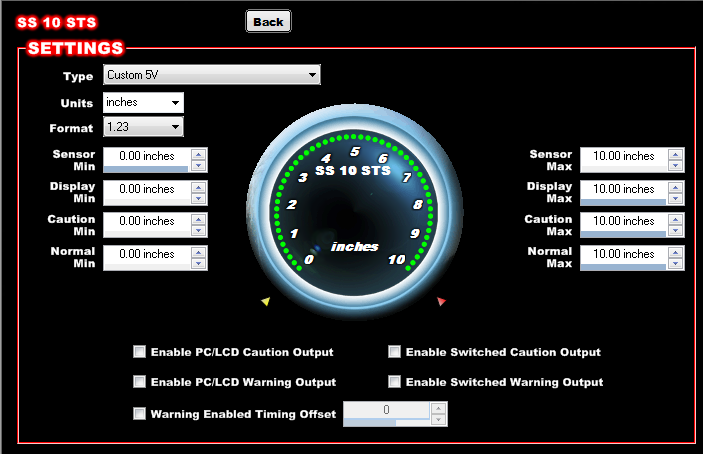

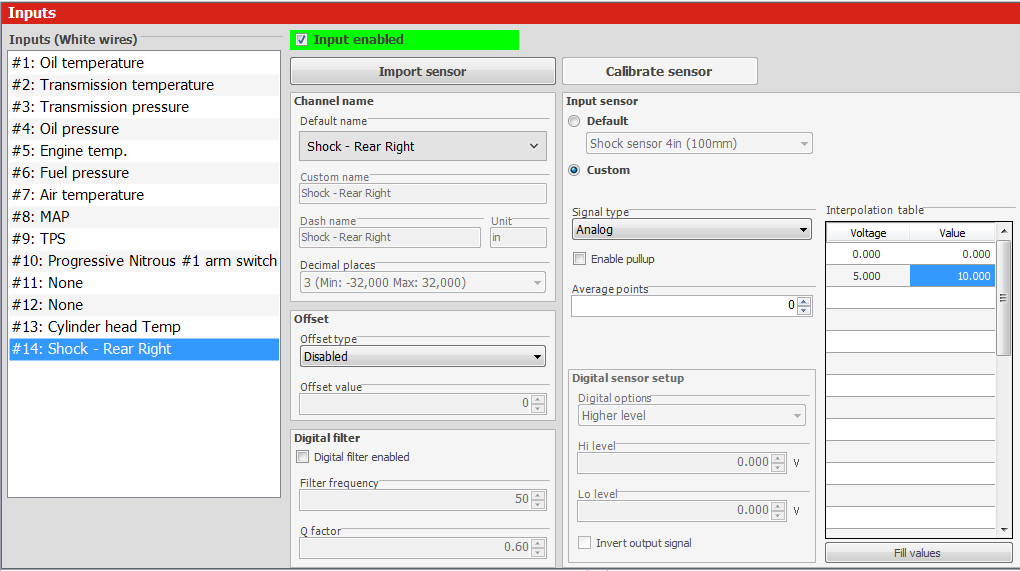

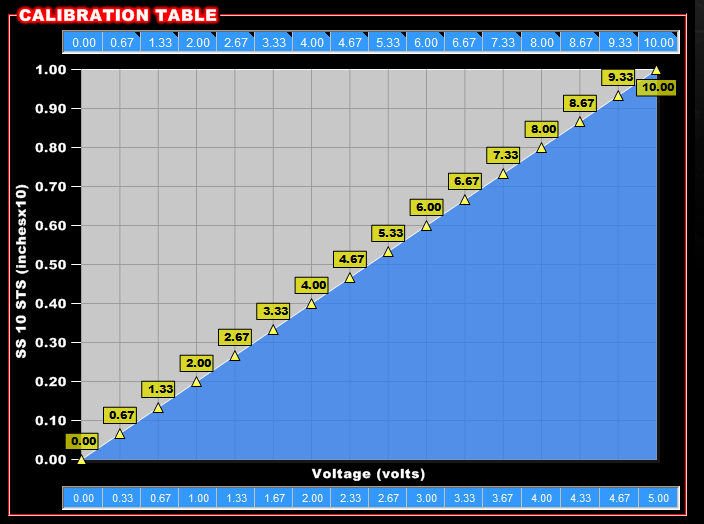

These sensors provide a linear 0-5v output.  They are compatible with Holley EFI, Fueltech, Haltech, and any ECU or data logger that accepts a 5v input.  Scaling is provided in the product photos.  If you have questions about how to scale the sensor or have problems feel free to contact me. Checkout our array of mounts for a complete package.

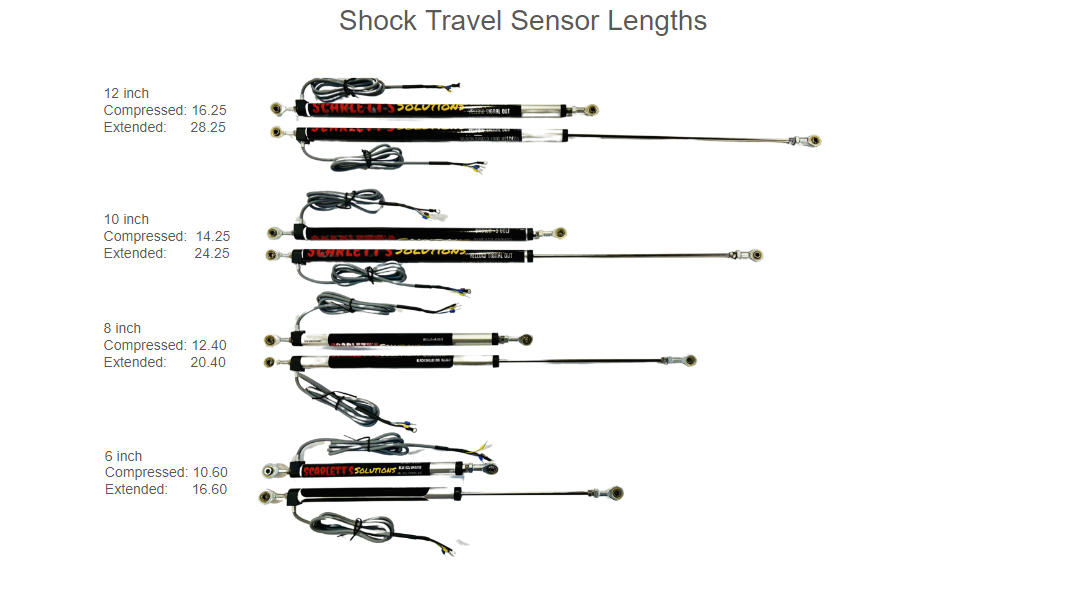

Eyelet to Eyelet Measurements - 14.25 inches compressed, 24.25 inches extended.  These values can be adjusted slightly by moving the eyelet jam nuts.

Please measure carefully when installing a shock sensor to ensure that it can not be bottomed out or over extended during suspension movement.
